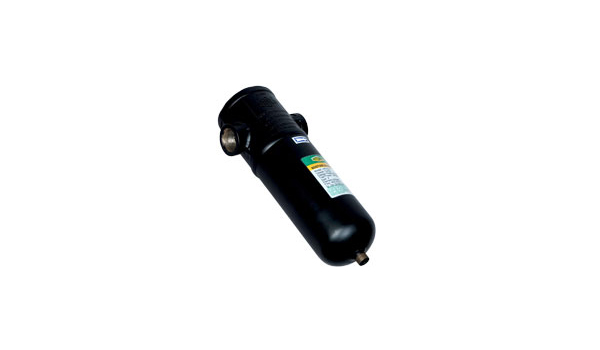

HYDINT MOISTURE SEPARATOR SCREWED

HYDINT MODEL: HPVS

MATERIAL OF CONSTRUCTION:
BODY:I.C./ C.S. / CF8
CARTRIDGE:IMPORTED S.S.
SIZE:1\2” TO 2”
WORKING PRESSURE:UPTO 16 BAR
EFFICIENCY:99.99%
TESTING PRESSURE:24 BAR
SERVICE LIFE:MIN. EXP. 8 TO 10 YRS
INSTALLATION:ADVISABLE AT END USE BEFORE FRL

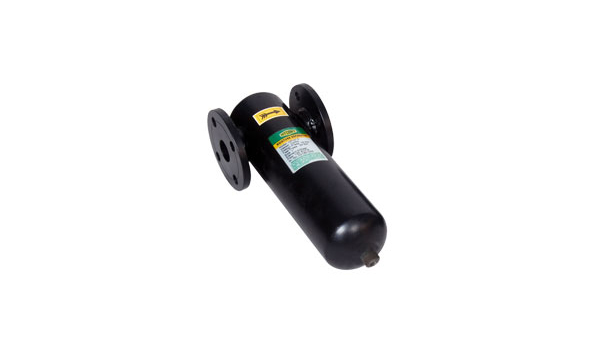

HYDINT MOISTURE SEPARATOR FLANGED END

HYDINT MODEL: HPVF

MATERIAL OF CONSTRUCTION: BODY:C.S. / CF8
CARTRIDGE:IMPORTED S.S.
SIZE:1” TO 6” FLANGED DIMENSION ‘D’ TABLE
WORKING PRESSURE:UPTO 16 BAR
EFFICIENCY:99.99%
TESTING PRESSURE:24 BAR
ENDS : F/D TABLE SERVICE
LIFE:MIN. EXP. 8 TO 10 YRS
INSTALLATION:ADVISABLE AT END USE BEFORE FRL

HYDINT MOISTURE SEPARATOR WITH LIP DRAIN BOWL FEMALE SCREWED

HYDINT MODEL:COMBO

MATERIAL OF CONSTRUCTION:
BODY:ALUMINIUM DIE.CAST
CARTRIDGE:IMPORTED S.S.
BOWL:ALUMINIUM
SIZE: 1\4” & 1\2”
WORKING PRESSURE:UPTO 8 BAR
EFFICIENCY:99.99%
TESTING PRESSURE:12 BAR
BAR SERVICE LIFE:MIN. EXP. 3 Years
INSTALLATION:ADVISABLE AT END USE BEFORE FRL

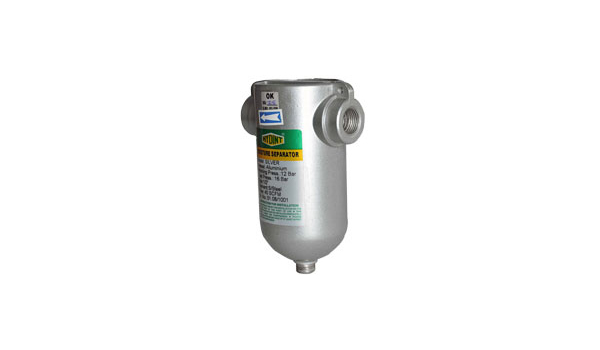

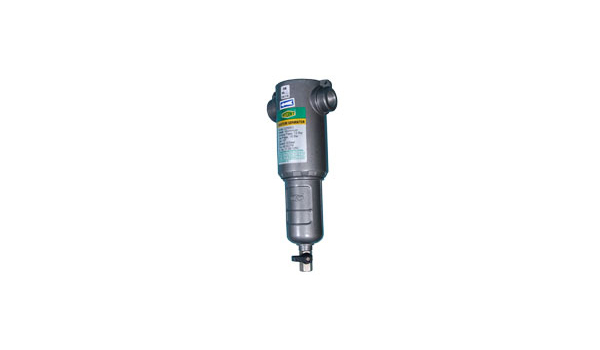

HYDINT MOISTURE SEPARATOR WITH ALLUMINUM BODY FEMALE SCREWED END

HYDINT MODEL:SILVER

MATERIAL OF CONSTRUCTION:

BODY:ALLUMINIUM DIE CAST
CARTRIDGE:IMPORTED S.S.
SIZE:1\2”
WORKING PRESSURE:UPTO 12 BAR
EFFICIENCY:99.99%
TESTING PRESSURE:16 BAR SERVICE
LIFE:MIN. EXP. 8-10 Years<
INSTALLATION:ADVISABLE AT END USE BEFORE FRL

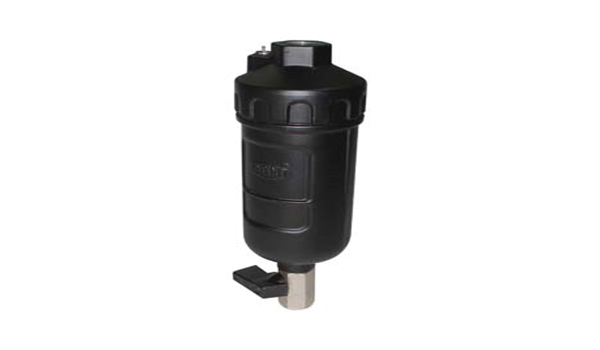

MANUAL DRAIN WITH BALL VALVE FOR HYDINT MOISTURE SEPARATOR METAL BOWL

HYDINT MODEL:MIST

MATERIAL OF CONSTRUCTION:
BODY & BOWL:ALLUMINIUM
MINI BALL VALVE:BRASS BODY

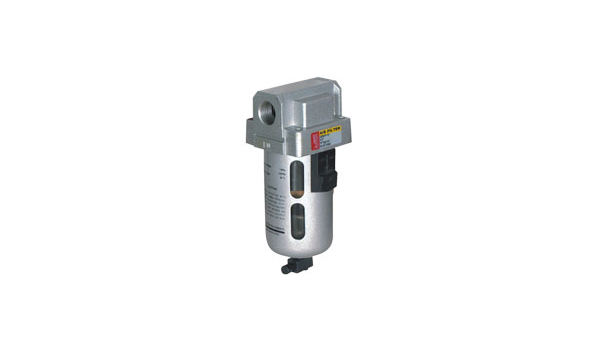

HYDINT AIR FILTER-JON

HYDINT MODEL:JON

MATERIAL OF CONSTRUCTION:

BODY:ALLUMINIUM PRESS. DIE CAST
BOWL:POLYCARBONATE
BOWL GUARD: STEEL
SEALS:NITRILE
SIZE: 1\2” BSP
ELEMENT: SINTER BRONZE(25 MICRON)
PRESSURE:10 KG/CM2
TEMPRATURE: 50`C(MAX)
MEDIA:COMPRESSED AIR
WEIGHT: 0.600 Kg.

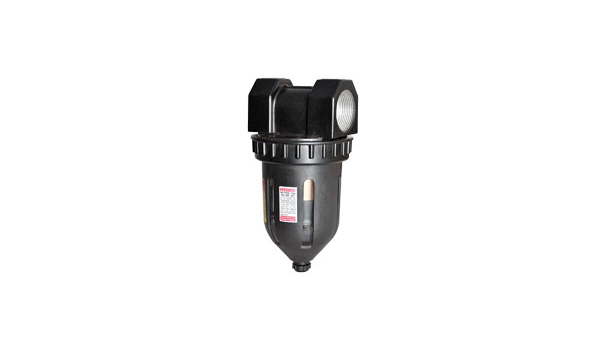

HYDINT AIR FILTER-STANDARD

HYDINT MODEL: STANDARD

MATERIAL OF CONSTRUCTION:
BODY: ALLUMINIUM PRESS. DIE CAST
BOWL:POLY CARBONATE WITH SAFETY GUARD (METAL BOWL AVAILABLE ON REQUEST)
SIZE:1\4” TO 2” SCREWED (F) TO BSP
ELEMENT: 25 MICRON
DRAIN:MANUAL DRAIN COCK
OPERATING PRESSURE: UPTO 10 KG/CM2(HIGH PRESSURE AVAILABLE ON REQUEST)
TEMPRATURER:50 `C
SEALS:NITRILE/NBR

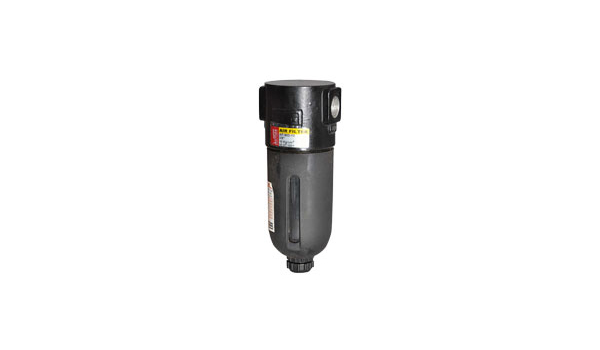

HYDINT AIR FILTER-MIDI

HYDINT MODEL:MIDI

MATERIAL OF CONSTRUCTION:
BODY:ALLUMINIUM PRESSURE DIE CAST
BOWL:POLY CARBONATE(METAL BOWL OPTIONAL)
DIAPHRAGM & SEALS:NITRILE/NBR
MEDIA:AIR(FILTER & LUBRICATED)
TEMPRATURE RANGE:50` C (MAX)
REGULATING RANG:0.5 TO 8.5 KG/CM2
SIZE:1\4” TO 1\2”
PRESSURE RANGE :10 KG/CM2

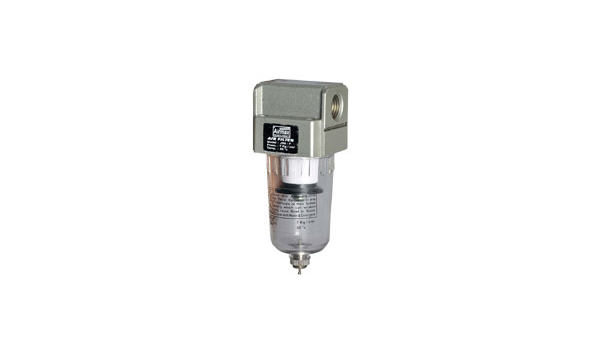

HYDINT AIR FILTER-MINI

HYDINT MODEL:MINI

MATERIAL OF CONSTRUCTION:
BODY: ALLUMINIUM PRESS. DIE CAST
BOWL:POLYCARBONATE WITH SAFETY TANK (METAL BOWL AVAILABLE)
ELEMENT:25 MICRON
SEALS:NITRILE/NBR
TEMPRATURE RANGE: UP TO 50`C (MAX)
SIZE:1\4”
PRESSURE: UPTO 7 KG/CM2(MAX)
DRAIN:MANUAL DRAIN COCK

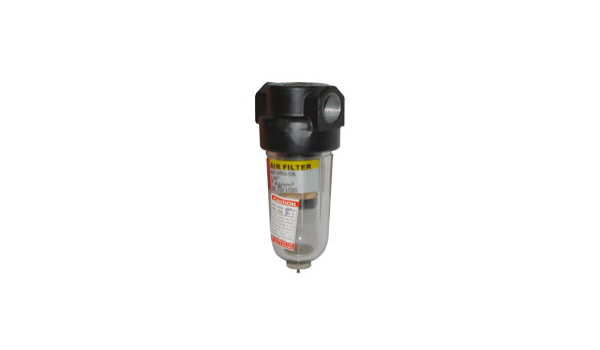

HYDINT AIR FILTER-JINI

HYDINT MODEL:JINI

MATERIAL OF CONSTRUCTION:

BODY: ALLUMINIUM PRESS. DIE CASTING
BOWL:POLYCARBONATES
BOWL GUARD: STEEL
SIZE: 1\4”
OPERATING PRESSURE:UPTO 7 KG/CM2
TEMPRATURER:50 `C

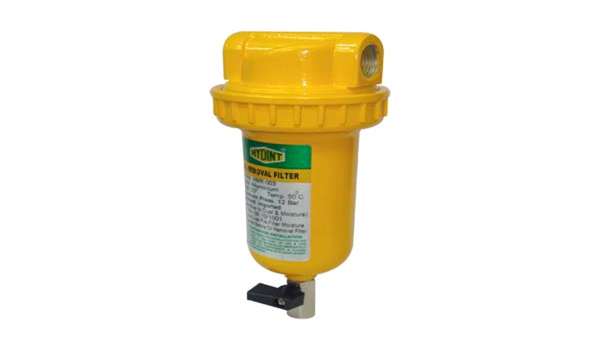

HYDINT OIL REMOVAL FILTER

HYDINT MODEL: HMR

MATERIAL OF CONSTRUCTION:
BODY: ALLUMINIUM DIE CAST
BOWL: ALLUMINIUM DIE CAST
SIZE:1\4” TO 2”
EFFICIENCY:99.99%
PRESSURE:12 BAR
TEMPRATURE:50`C
ELEMENT LIFE:1.1/2 TO 2 YEAR
INSTALLATION:AT END USE AFTER FILTER

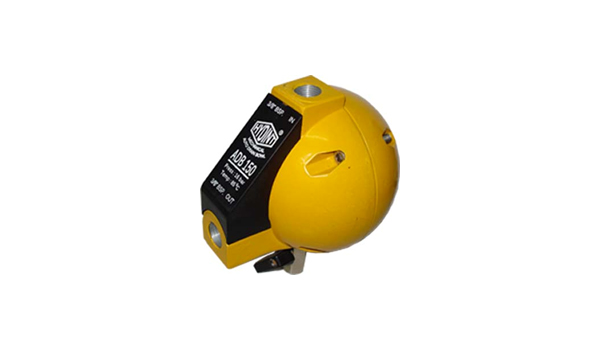

HYDINT MECHANICAL AUTO DRAIN VALVE

HYDINT MODEL:ADB-150

MATERIAL OF CONSTRUCTION:

BODY:ALUMINIUM DIE CAST
SIZE:1\2",3\8"
PRESSURE:0 To 16BAR
TEMPRATURE RESISTENCE:85°C
MEDIA:MOISTURE FROM COMPRESSED AIR
FEATURES:
• Complete Mechanical Drain Valve.
• No required any types of Electrical/Fuield etc.
• Easy to maintaine and replacable parts.
• use for moisture separator /Air Compressor or other
automatic draining application also we provide
Ball Valve for Manual Drain.
• Zero Air Loss type Design.

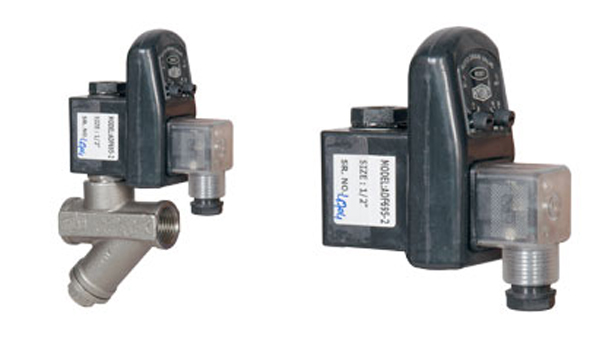

HYDINT AUTO DRAIN VALVE WITH ELECTRICALLY ADJUSTABLE TIMER & FILTER ARRANGEMENT

HYDINT MODEL:ADF 695

MATERIAL OF CONSTRUCTION:

VALVE BODY:IC SS / FORGED BRASS / PLASTIC
SIZE:1\2”
PRESSURE:60 KG
OFF TIME: 0.5 TO 45 MIN.
ON TIME : 0.5 TO 10 SECONDS
VOLTAGE : 230V AC
OTHER VOLTAGE AVAILABLE ON REQUEST
SPARE ELECTRICALLY TIMER WITH COIL ADJUSTABLE
TIMER SPECIFICATION:
MODEL:AD-695
OFF TIME: 0.5 TO 45 MIN.
ON TIME : 0.5 TO 10 SECONDS
VOLTAGE : 230V AC
THER VOLTAGE AVAILABLE ON REQUEST
